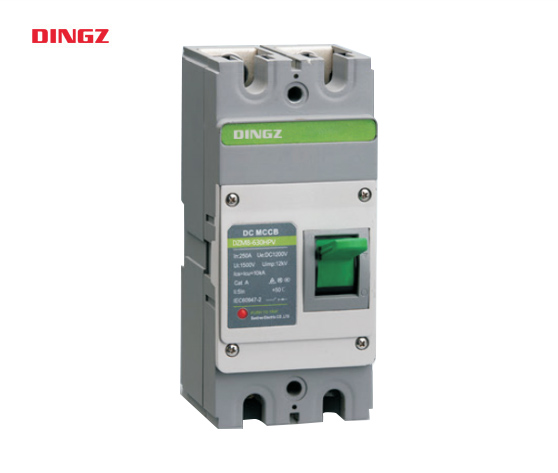

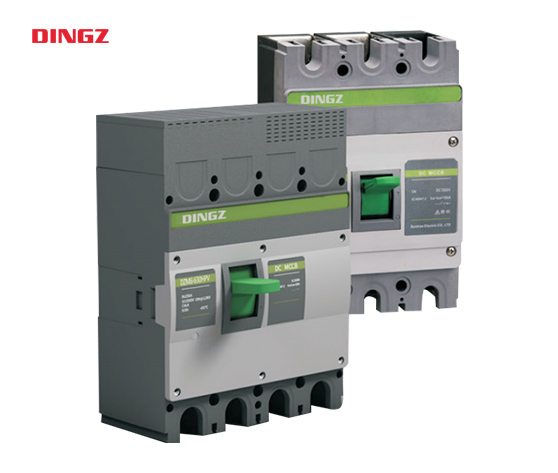

DZM8-HPV Special DC Molded Case Circuit Breaker for Photovoltaics

DZM8-HPV series DC molded case circuit breakers for photovoltaic applications are suitable for rated voltage up to DC1500V, rated current 630A DC grid circuit, DC circuit breakers with overload long delay protection, short circuit instantaneous protection

↼ Previous Page
Return ↺
Next Page ⇁
  • Product Overview
  • Technical Parameter
  • Text and image analysis
  • Product Features

Overview

DZM8-HPV series special DC molded case circuit breaker for photovoltaics is suitable for DC power grid circuits with rated voltage up to DC1500V and rated current of 630A. The DC circuit breaker features overload long-time delay protection and short-circuit instantaneous protection, which are used to distribute electric energy and protect lines and power supply equipment from overload, short circuit and other faults.

The operating mechanism of DC circuit breaker features quick closing and quick breaking, with compact structure, small volume and convenient use.

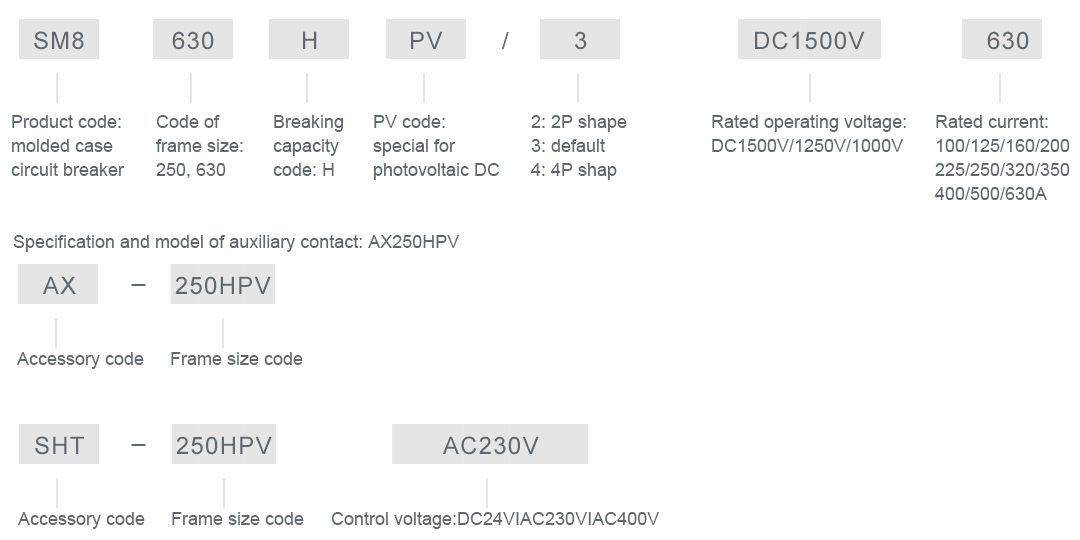

Model and meanings

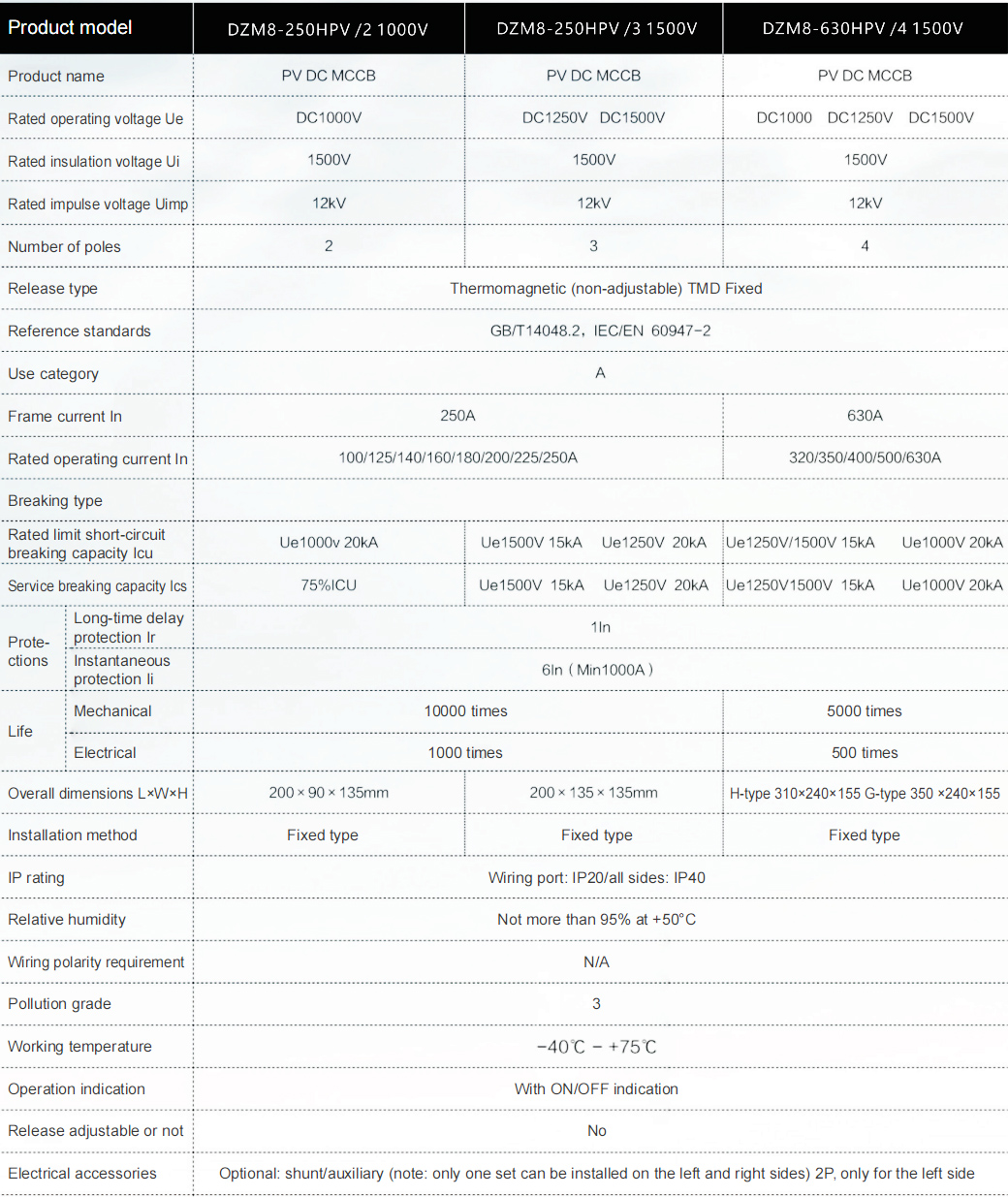

Electrical technical parameters

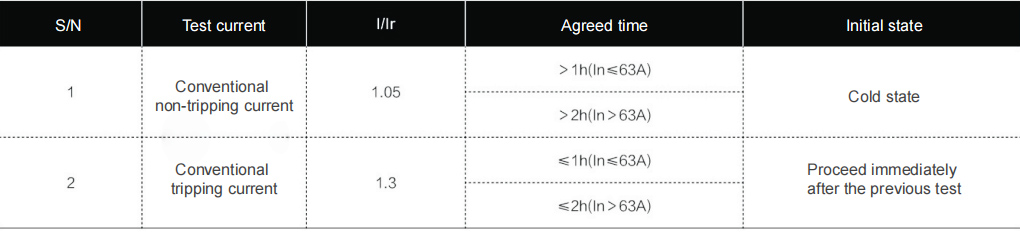

Thermal protection characteristics

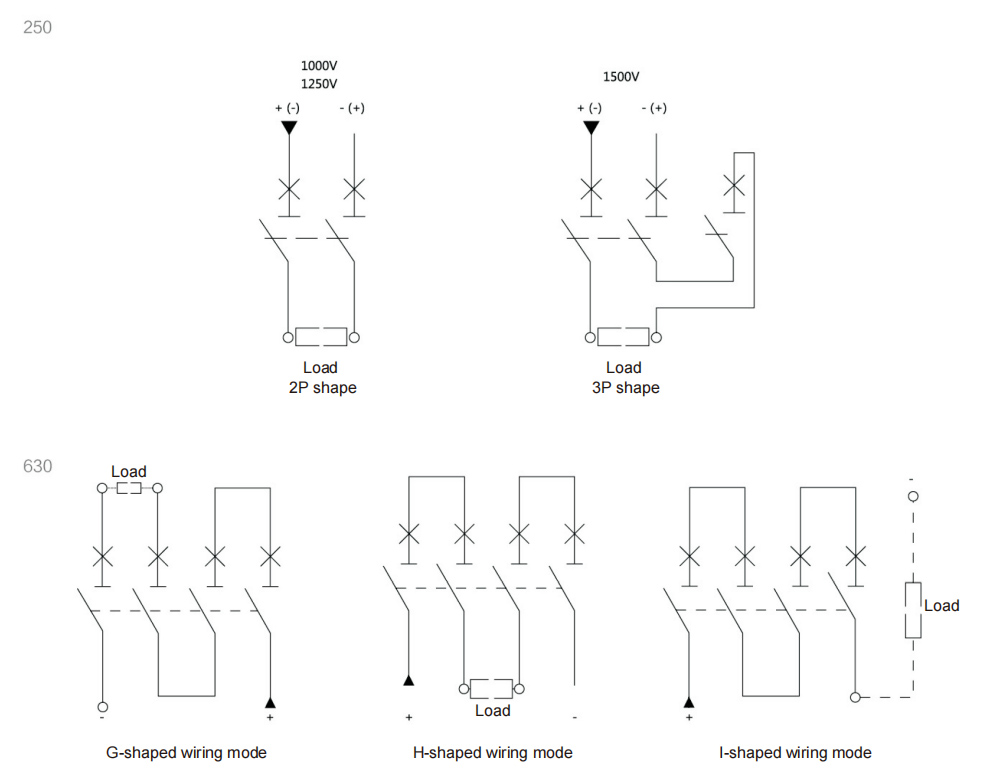

Wiring Diagram

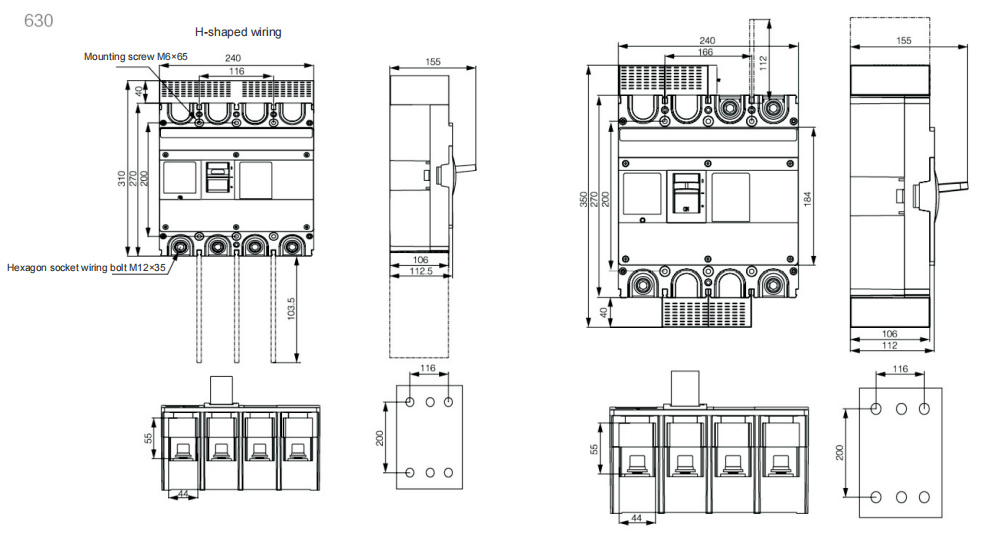

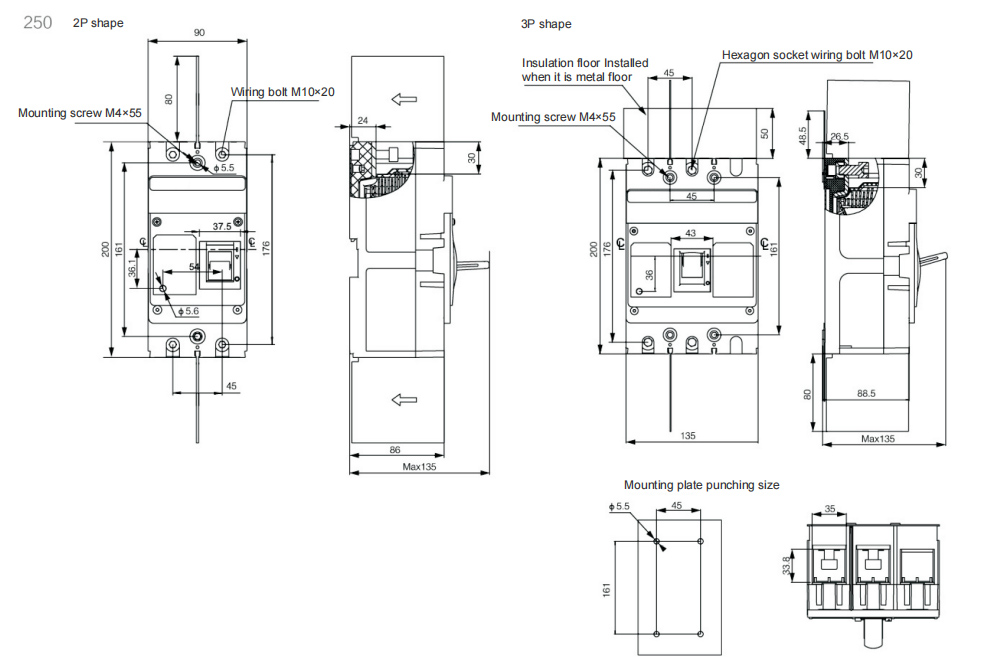

Dimension and installation dimension
