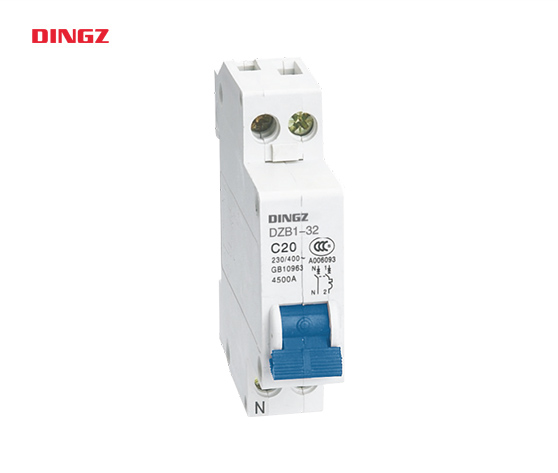

DZB1-32 series miniature circuit breaker

DZB1-32 miniature circuit breaker is suitable for single-phase residential circuits with AC 50 Hz and 60 Hz, and a rated voltage of 230 V and below, to protect against overload and short circuit of electrical circuits.

↼ Previous Page
Return ↺
Next Page ⇁
  • Product Overview

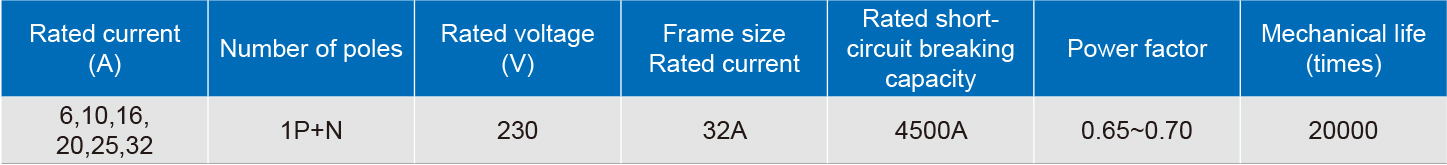

  • Technical Parameter
  • Text and image analysis
  • Product Features

Scope of application

DZB1-32 miniature circuit breaker is suitable for single-phase residential circuits with AC 50 Hz and 60 Hz, and a rated voltage of 230 V and below, to protect against overload and short circuit of electrical circuits. The product has high breaking capacity, smallsize, and a width of only 18 mm. Simultaneously cutting off the live and neutral wires eliminates the personal and fire hazards caused by the reverse connection of the live and neutral wires or the grounding potential of the neutral wire. It is currently the most ideal distribution protection switch in the civilian residential field.

The product complies with IEC60898-1 and GB10963.1 standards.

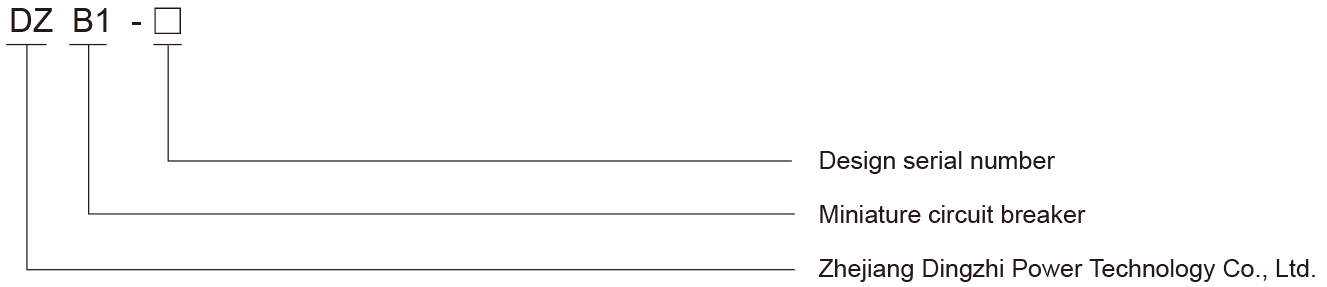

Model and meanings

28
